IP Service
The IP Layer handles internal packets like both the Frame and
ATM services, however IP services also provide the interface to the
outside world (NMS, student Xterms, etc). All packets from the real
world enter the simulation as IP packets on the ethernet device.
Although the basic logic flow of MainIn() and MainOut() is the same as
the Frame and ATM services, there is lot more to this service.
-

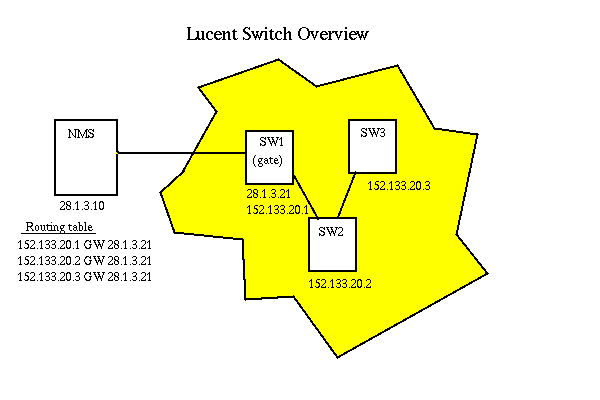

Lucent switches can be configured as either regular switches or
gateway switches. All switches have a Lucent internal IP address,
but gateway switches also have an ethernet IP address. Gateway switches
provide management paths for SNMP packets from the NMS to the non
gateway switches.
In general, when the NMS needs to send an SNMP packet to a switch,
the packet is built with the destination address of the Lucent Internal
IP address (152.133.20.X in the above figure). For example, when the NMS
sends a packet to SW2, he builds the packet for destination 152.133.20.2.
However, the NMS has no visibility into the 152.133.20.X network.
So he looks in his routing table and finds that the path to 152.133.20.2
is through the gateway 28.1.3.21. Therefore, he sends the packet to the
MAC address of the device that responds to ARP for 28.1.3.21.
The gateway switch SW1 receives the packet with his MAC address but
SW2's IP address as the destination. Since SW1 knows he is a gateway
switch, he looks for a route to SW2, finds the cable and sends the packet
on. The path back is similar.
-

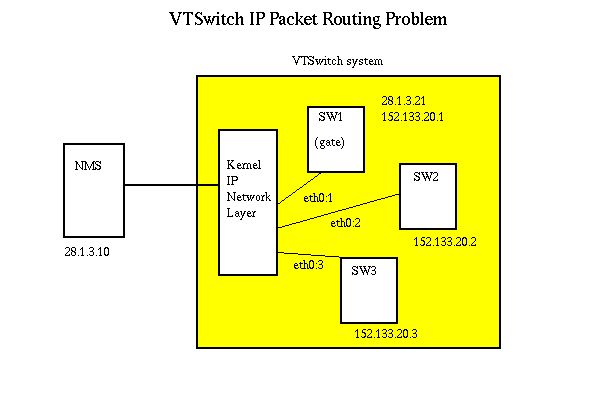

VTswitch uses a feature of Unix kernels called IP Aliasing to emulate
all switches on a single machine. IP Aliasing allows one machine to respond
to many different IP addresses. The kernel network layer examines the
destination IP address in each packet, and passes the packet on to the
application with a socket bound to that IP. This presents a problem in
our simulation.
Again, when the NMS builds a packet destined for SW3, IP 152.133.20.3,
he will send it through the gateway 28.1.3.21. He sends out an ARP to see
who responds to 28.1.3.21. The VTSwitch system responds with his MAC address,
and the NMS sends the packet to the kernel IP layer of VTSwitch. The problem
is that the kernel IP layer knows that SW3 has a socket open and listening
on 152.133.20.3, and sends the packet directly to SW3.
Why is this a problem? In the world that we are simulating, that packet
must pass through the gateway switch SW1, and the intermediate
switch SW2 before getting to SW3. If we bypass these switches, the simulation
will be wrong. For example, suppose that the cable between SW1 and SW2 is
down or the Pport is misconfigured. Suppose the Egress Lport on SW2 is in
a state of congestion and is dropping packets. What if IP Record Route or
Traceroute is used from the NMS to SW3? At the very least, the
byte and packet statistics on the ingres and egress lports of SW 1 and
SW2 will be incorrect.
So the problem is obvious. The kernel will want to deliver the packet
directly to SW3, but for the simulation to be accurate, the packet must
pass through SW1 and SW2.
-
The solution was a mixed use of RAW Ip sockets, a firewall feature
called IP Transparent Proxy, and creative binding of IP addresses to
specific devices. Here's how it works.
SW3 is a non gateway switch. When he is started, he opens a RAW IP
socket listening on 152.133.20.3, but binds it to the loopback network
device. SW2 is also a non gateway switch and does the same thing for
IP 152.133.20.2. SW1 is a gateway switch, and therefore needs to
act as a router for all packets bound to SW2 and SW3. He creates a RAW
IP socket for all IP addresses (INADDR_ANY), and binds it to
the ethernet network device.
What this has accomplished so far is that the RAW socket for SW1 will
hear all packets from the outside world. This includes packets for
152.133.20.2 (SW2) and 152.133.20.3 (SW3). The Raw sockets opened by
SW2 and SW3 are bound to the loopback device and won't hear anything from
the outside world.

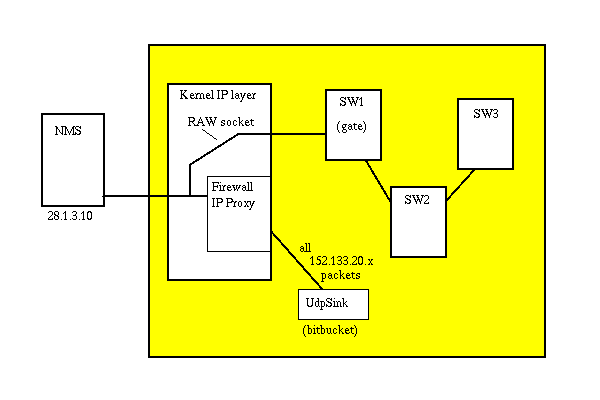

Finally, the IP Transparent Proxy feature of the kernel firewall is
configured to redirect all TCP and UDP packets inbound to 152.X.X.X to
port 1313. Listening on port 1313 is UdpSink, which reads these packets
and drops them in the bitbucket. If this program was not there, the
kernel would return ICMP port unreachable error messages to the NMS, because
it would fail to deliver 152.133.20.2 and 152.133.20.3 packets to SW2 and
SW3 as they are Raw sockets listening on the wrong device.
So, to follow a packet through the system, the NMS creates an SNMP
packet (UDP port 161) to send to SW3. He places the destination IP
address of 152.133.20.3 into the header, finds the route through the
gateway, ARPs to see who responds to 28.1.3.21, and sends the packet
to VTSwitch.
The packet arrives at the kernel network layer. Since there is a Raw
socket listen for all packets placed by SW1, a copy of this packet is
made and handed to SW1. The original packet continues to the IP transparent
Proxy, where the destination port is changed to 1313, then sent on to
the UdpSink bitbucket. No port unreachable message is sent back to the NMS.
The copy of the packet is delivered to SW1, who looks in his routing
tables (if they were set up correctly by the student), and ships the
packet out the correct Lport over the cable to SW2. SW2, if configured
properly, passes the packet on to SW3, the destination switch. Mission
accomplished. Kinda.
-
When the packet arrives at the destination switch, something needs to
be done with it. It still needs to be delivered to the process that needs it.
In our example the UDP SNMP packet should be sent to SimAgent. If it was
an ICMP Ping packet, or other type of packet, it would have to be handled
appropriately.
Consider this. In the real world each switch has its own kernel IP
layer. The IP service routines have to emulate this to some degree.
There are separate components of the IP service routines to handle
ICMP, TCP and UDP packets. ICMP packets are handled directly by by
IPGlue. If a response is required, it is sent directly. UDP and TCP
packets require a little more.

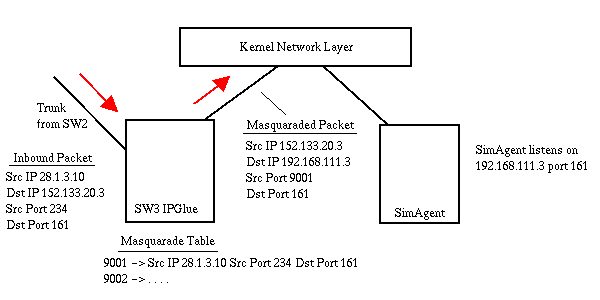

Implementing an entire UDP or TCP layer in IPGlue would have been
too time consuming, so we pull a little trickery and ask the kernel
for some help. SimAgent for SW3 is listening for all SNMP UDP packets on
a Dot4 private IP address of 192.168.111.3. The NMS sent the packet to
SimAgent for SW3 using IP 152.133.20.3. IPGlue masquerades the
inbound packet by replacing the destination address with 192.168.113.3,
replacing the source IP address with 152.133.20.3, and replacing the source
port with a unique index into a masquerade table. It then uses a Raw socket
write to send the packet directly to the IP layer in the kernel.

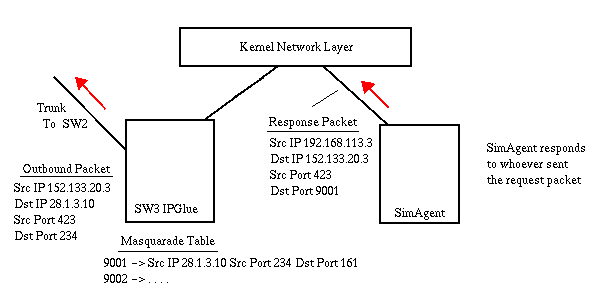

The kernel receives the masquaraded packet and knows to route it to
whoever is listening on 192.168.113.3 port 161. SimAgent for SW3 wakes up,
received the UDP SNMP packet and processes it, then sends the response
to whoever sent it to it, in this case 152.133.20.3 port 9001.
IPGlue has the raw listen on 152.133.20.3 bound to the loopback device.
It picks up a copy of the outbound packet before the IP Transparent Proxy
redirects it to port 1313 and the bitbucket. It takes this copy and using
the destination port as an index into the masquerade table, changes the
source IP address to 152.133.20.3, the destination IP address to 28.1.3.10,
and the destination port to 234. It then uses its internal static routing
tables to direct the packet out the cable to SW2.
IP Service routines follow the same basic logic as the Frame Relay
and ATM routines. However, since IP presents the interface to the real
world, it rely more on the RawIn() and RawOut() routines. Also, since
all packets passed in the sim are rooted in IP, the eventual destination
of all internal and external simulation packets (Frame or ATM) is the IP
layer.
-
IP RawIn() handles all packets that arrive over the Raw listen socket.
On gateway switches, this includes all packets that enter the system over the
ethernet network device for any destination. For non-gateway switches, this
is any IP packet that has the switch IP as its destination
and arrived over the loopback network device.
The packet is read into a local buffer while we decide if we need
to deal with it. If we are a gateway switch, this can be fairly complex,
as we 'hear' every packet. Basically, if the IP source address matches
our ethernet network mask then it is a packet from the NMS or something on
the student network (28.1.3.X in most cases). In that case, we see if we
have a route to the destination IP address in our static route table. If
so, then we handle the packet.
If we are not a gateway switch, we reject all packets that are not
TCP or UDP protocol and we reject all packets with a destination port
less than our masquerade base port. Basically, the only packets to arrive
here should be masquaraded TCP or UDP responses from our SimAgent or
telnet server. All other inbound ICMP, TCP and UDP packets should arrive over
a cable (different path).
If we decide to keep this packet, then we allocate a DgramHdr buffer for
it and encapsulate it in an internal packet header. This header will be
kept with the packet for its entire journey through the simulation. This
packet is then passed to MainIn().
-

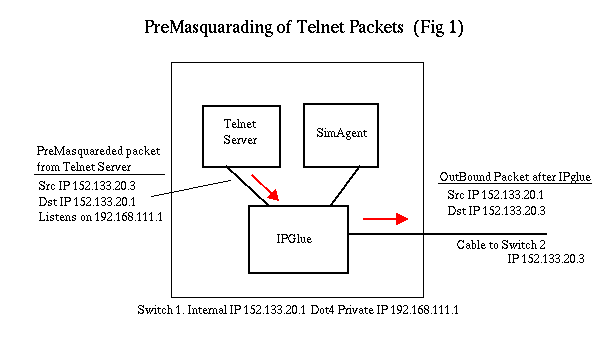

IP RawOut() handles sending packets back out to the Kernel IP layer. On
gateway switches this could be either sending the packet out to the real
world or sending a masquaraded packet to the switch SimAgent process. Non
gateway switches only send masquaraded packets out via RawOut().
RawOut() ensures that the packet is in the correct IP format, recalculates
the IP Checksum and sends the packet to the kernel.
-
All packets eventually get here, either from RawIn() or arriving cable
packets from another switch. After decrementing the Time To Live (TTL) field,
we process the IP Options. The only IP option we support is the IP Record
Route option, where the current IP is inserted into a list in the IP header.
(This is for ping -R.)
If the destination IP address is our switch IP or gateway IP, we invoke
the protocol handler for the type of packet (ICMP, TCP, UDP, OSPF, etc). This
will be discussed later.
If the destination IP is not our switch, and the TTL field is non-zero,
then we see if we have a static route to the destination. If so, we will
eventually invoke IP MainOut(). If not, or if the TTL is zero, then we will
format and send an ICMP error message to the IP source address.
-
MainOut() is simple. If the packet has our IP address as the destination,
then it is a masquaraded packet for SimAgent and we invoke RawOut(). If not,
we will invoke the static routing routines to send it out the correct cable.
-
The static routing routines work closely with the IP layer. These routines
decide where the packet is bound and will call IP MainOut() directly for
whichever cable is required.
Just like real switches, the simulated switches need to have network layer.
Since we can't depend on the kernel and masquerading to handle ICMP packets
like we do with TCP and UDP, we have to implement a simple ICMP handler.
There are many options to ICMP, but we only really care about ICMP ECHO,
ECHO Response, and a few of the ICMP error messages. Any other type is
ignored.
-
Ping requests are sent as ICMP Echo type packets. We handle these by
reusing the same buffer and switching the source and destination IP addresses.
We then reset the ICMP protocol type to ECHO_REPLY, recalculate the
checksum, and send the packet back to the IP MainOut() routine which will
decide where to send it.
Echo Replys are a slightly different matter. If we receive an echo
reply with our IP as the destination address, it arrived from somewhere
inside the simulation, and is a response to a Ping request from the telnet
server for this switch. Keep in mind that the telnet server is a separate
process from IPGlue. It sends out its Ping ECHO request with the source
and destination addresses 'pre-masquaraded' so that IPGlue will pick them
up and route them correctly. This pre-masquerading is discussed in detail
later.
The telnet server is listening for Ping echo responses on its dot4
private IP address 192.168.111.X. The Icmp Echo handler puts this in the
destination address and sends the packet to the RawOut() handler.
-
Handling of ICMP error messages is similar to ICMP Echo responses.
All error messages are responses to local requests from the telnet server
or other switch component. The destination address is replaced with the
Dot4 private switch IP address 192.168.111.X and the packet is sent to
the RawOut() handler.
Masquerading is discussed in detail above. In review, a packet
arrives with a source and destination IP address, and a source and
destination port. Masquerading replaces the destination address with
a new destination, the source address with the IP address of the
masquerading entity, and the source port with a unique index into
a table. The original source IP and port are stored in this table.
The packet is then sent on.
Whoever receives the packet will reply to the source IP address and
source port. This is the masquerading entity. He receives the packet,
looks up the source port as that unique index into a table, and retrieves
the original target IP address and port. These are then placed in the packet
and the packet is sent back to the original system.
As you can see, this is inherently a client-server operation. The client
request places the correct entries in the masquerading table that the
server eventually responds to. The server can not initiate a request to
a masquaraded client unless that client has first requested something
from the server and created an entry into the masquerade table. In most
cases this meets the needs of the simulation. There are a couple of
exceptions, of course.
-
Traps are an asynchronous event, not a response to a client request.
Fortunately, a switch will not issue a trap before the NMS (SNMP client) has
requested something from the switch (SNMP server). Therefore, an entry
already exists in the masquerade table.
It is important that trap packets pass through IPGlue. Apart from
keeping statistics and routes correct, it the trap is sent directly
from SimAgent, the kernel will put some unpredictable IP address as the
source IP in the packet (one of the many IP addresses that exist on the
system, not necessarily the one for the switch that initiated the trap).
The NMS needs the source IP address to be the correct one for the switch
that initiated the trap. IPGlue handles this.
-
The telnet server can send Ping and TraceRoute packets to any switch
in the simulation. However, if it simply puts the IP address of the target
switch as the destination of the packet, the kernel would deliver the packet
directly to the destination switch, bypassing all the cables and routes that
the packet should have taken to make the simulation real.
To fix this, the telnet server knows to pre-masquarade the packet. For
example, the telnet server sends a Ping to 152.133.20.3. He will put his
own Lucent internal IP address 152.133.20.1 in the destination IP
address and the realdestination address in the source IP address
and send the packet to the kernel. IPGlue hears the packet on the raw listen
socket and flips the source and destination addresses. The kernel flushes
the original packet to UdpSink.
When the target switch responds, it does so to the 152.133.20.1 address.
All intermediate switches know how to route the packet on this address.
When the packet arrives to IPGlue on the destination switch, he replaces the
destination address with the Dot4 private IP address 192.168.111.1 and
sends it out.
Static routing may need to be revisited eventually. Current
implementation will suffice, as non-IP packets arrive over FRAD or
ATM routers and those RawIn()s. The handling of routing needs to
be separated further from the protocol requesting the route
Is all of this really necessary? Yup. This simulation deals with a mixture
of real world packets from the NMS and student Xterms (SNMP, Ping, and
traceroute), as well as internal simulated packets from the telnet server.
All packets are required to follow the correct paths, either directly to
gateway switches, or over cables, trunks and circuits to other switches.
Any number of variables can affect the path a packet takes. Congestion,
bad trunks on intermediate switches, misconfigured physical ports,
unknown routes and incorrectly provisioned circuits to name just a very
few. However, the path choosen for the packet, as well as the time it takes,
has to be correct for the simulation to be useful. This applies equally for
both internally generated packets from the telnet server, and externally
generated packets from the NMS or student Xterm.
Not only do the paths choosen have to be correct for traceroute and
ping -R, but the statistics on the destination switch, as well as all
intermediate switches, must be accurate. Statistics generated by each
switch are used by the student to determine if he or she has correctly
provisioned the switch and the network. Without accurate network statistics,
the simulation is not useful.
